AutoMQ Table Topic integrates with Iceberg, allowing streaming data to be ingested into data lakes for analysis and querying. This article introduces the technical architecture, principles, and core concepts of Table Topic functionality.

​
Architecture and Advantages

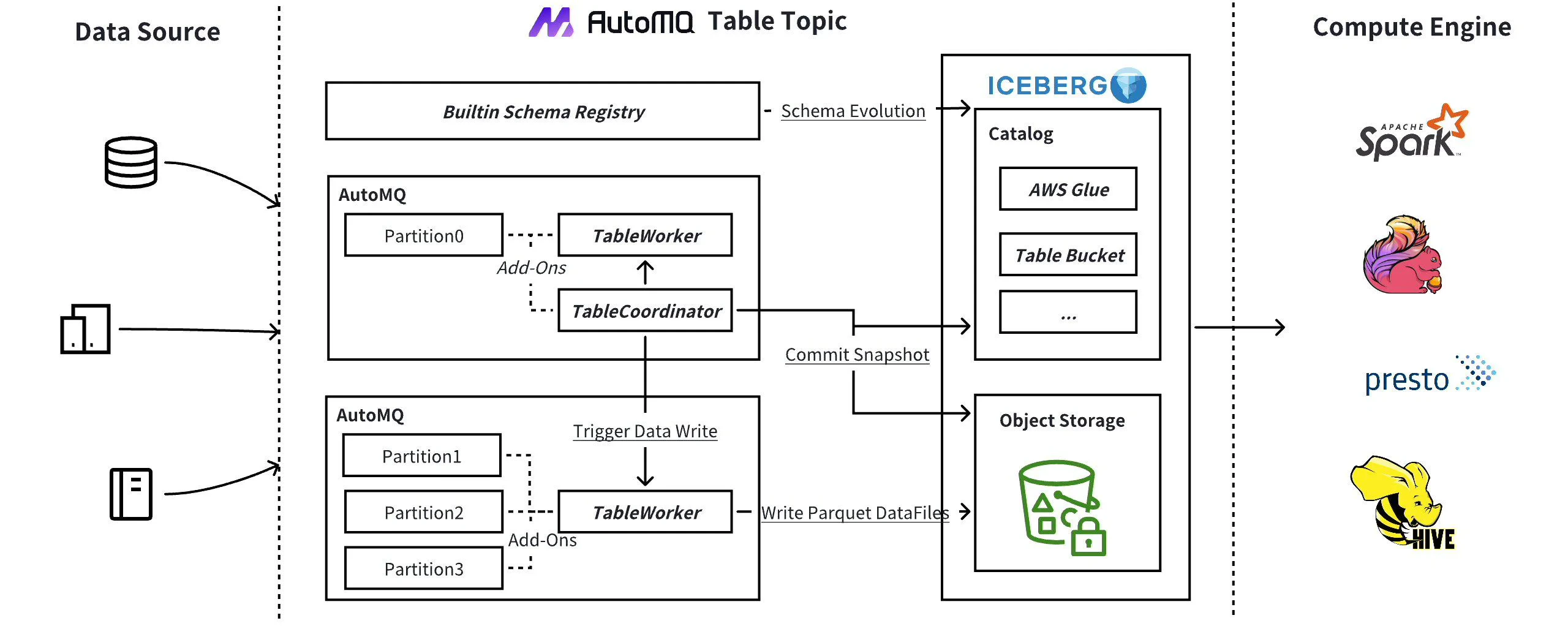

AutoMQ Table Topic enables real-time data lake ingestion and query analysis through its embedded streaming table architecture. The technical architecture is outlined below: Table Topic has several advantages over traditional ETL data lake ingestion solutions: Table Topic has several advantages over traditional ETL data lake ingestion solutions:
  • Out of the Box: With just one click, you can activate AutoMQ Table Topic to stream data into Iceberg tables for continuous, real-time analytics.
  • Built-in Schema Registry: The built-in Kafka Schema Registry is ready to use. Table Topic leverages registered schemas to automatically create Iceberg tables in your catalog services (e.g., AWS Glue) and supports automatic schema evolution.
  • ETL-Free (Extract, Transform, Load): Traditional data lake ingestion methods often require intermediary tools such as Kafka Connect or Flink. Table Topic eliminates such ETL pipelines, significantly reducing costs and operational complexity.
  • Auto Scaling: AutoMQ features a stateless and elastic architecture that allows brokers to scale up or down with dynamic partition reassignment. Table Topic leverages this framework to handle ingestion rates from hundreds of MiB/s to several GiB/s.
  • AWS S3 Table Integration: Table Topic integrates with S3 Table, leveraging its Data Catalog and maintenance features such as compression, snapshot management, and unreferenced file deletion. This integration also facilitates large-scale data analytics through AWS Athena.

​
Constraints and Limitations

Using the AutoMQ Table Topic feature requires meeting the following conditions:
  • Version Constraint: The AutoMQ instance version must be >= 1.4.1.
  • Catalog Requirement: To use Table Topic, users must provide an external, available Data Catalog service. Currently, AutoMQ supports the following Catalog types:
    • AWS S3Table Catalog: AWS S3 offers a new Table Bucket, equipped with built-in catalog management and data lake storage.
    • AWS Glue Catalog: AWS Glue provides unified catalog management in the cloud and supports integration with query tools such as Athena.
    • Hive Catalog: Customers can provide catalog support themselves based on the Hadoop ecosystem’s Hive Metastore, or they can purchase cloud provider-hosted EMR HMS services.

​
Workflow

Users need to follow the configuration workflow when using the AutoMQ Table Topic feature as outlined below:
  1. Configure Data Catalog: Select and configure your preferred Data Catalog service (e.g., AWS S3Table Catalog, AWS Glue Catalog, or Hive Catalog).
  2. Create Instance, Enable Table Topic, and Set Target Catalog: When creating an AutoMQ instance, enable the Table Topic feature and specify the configured Data Catalog.
  3. Configure Topic to Enable Stream Table Rotation: In the Topic configuration, enable the stream table rotation feature.
Note:When configuring a Topic for stream table processing, you can freely modify the default Topic parameter configurations. For detailed Table Topic configuration information, refer to Table Topic Configuration▸.

​
